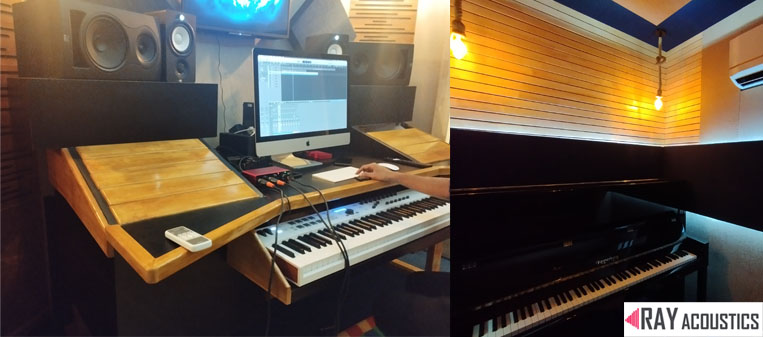

Music Studio Acoustic Design: Creating the Perfect Sound Environment
For musicians, producers, and audio engineers, the recording studio is a sacred space where creativity meets technical precision. At the heart of every great studio lies exceptional acoustic design—the foundation upon which professional recordings are built. This comprehensive guide explores the principles, techniques, and considerations for creating the perfect sound environment in your music studio.
Music studio acoustic design is a specialized discipline that combines science, engineering, and artistry. Unlike regular rooms, recording studios require precise control over sound behavior to capture performances accurately and enable critical mixing decisions. The goal is to create a space where musicians can perform at their best and engineers can hear every detail with clarity and precision.
"A great recording studio is more than a room with equipment—it's an instrument in itself. The acoustic design shapes every note, every nuance, every emotion captured in the recording. When the acoustics are right, the music comes alive."
Understanding Studio Acoustics
1. The Three Acoustic Functions: Every recording studio must address three fundamental acoustic requirements: - Sound Isolation: Preventing external noise from entering and internal sound from escaping. - Acoustic Treatment: Controlling reflections, reverberation, and frequency response within the room. - Acoustic Design: Creating spaces that sound natural, inspiring, and accurate for their intended purpose.
2. Key Acoustic Parameters: Professional studio design considers several critical measurements: - RT60: Reverberation time—how long sound takes to decay by 60dB. - Frequency Response: How the room affects different frequencies. - Modal Distribution: The spacing of resonant frequencies based on room dimensions. - SPL (Sound Pressure Level): Volume levels within the space. - Noise Floor: The ambient noise level in the studio (measured in NC or NR curves).
3. The Role of Room Shape: Room geometry significantly impacts acoustic performance: - Non-Parallel Walls: Reduces flutter echoes and standing wave issues. - Golden Ratio: Ideal proportions (1:1.6:2.56) for balanced modal distribution. - Sloped Ceilings: Help reduce standing waves in the vertical dimension. - Angled Surfaces: Direct reflections away from the listening position.
Essential Studio Spaces and Their Acoustics
1. Control Room: The heart of the studio where mixing and critical listening occur: - Acoustic Goals: Neutral, accurate monitoring environment (RT60: 0.3-0.5 seconds). - Key Design Elements: Symmetrical speaker placement, controlled early reflections, effective bass management. - Monitoring Setup: Equilateral triangle listening position, proper monitor isolation. - Acoustic Treatment: Broadband absorption at first reflection points, bass trapping, diffusion on rear wall.
2. Live Room: Where musicians perform and instruments are recorded: - Acoustic Goals: Natural ambience that flatters recordings (RT60: 0.5-1.5 seconds). - Key Design Elements: Variable acoustics through movable panels, good isolation from control room. - Acoustic Treatment: Combination of absorption and diffusion, adjustable elements for different instruments. - Ceiling Height: Minimum 10-12 feet for optimal acoustics and instrument recording.
3. Isolation Booths: Compact spaces for vocal and instrument isolation: - Acoustic Goals: Controlled environment for close-mic recording (RT60: 0.2-0.4 seconds). - Key Design Elements: High sound isolation (STC 60+), visual communication with control room. - Acoustic Treatment: Absorption to control reflections without deadening, bass traps for vocal warmth. - Size Considerations: Adequate space for performer comfort and proper mic placement.
4. Machine Room: Housing computer equipment and outboard gear: - Acoustic Goals: Controlled noise environment, cooling for equipment. - Key Design Elements: Sound isolation from control room, adequate ventilation.
Acoustic Treatment Strategies for Music Studios
1. Broadband Absorption: Controlling reflections across the frequency spectrum: - Materials: Rigid fiberglass, mineral wool, acoustic foam (4-6 inch thickness). - Placement: First reflection points, walls, ceilings, and areas requiring controlled absorption. - Installation: Mount with air gap for improved low-frequency performance. - Coverage: Typically 20-30% of wall surface for control rooms, variable for live rooms.
2. Bass Trapping: Managing low-frequency energy: - Types: Corner traps (superchunk, panel), membrane traps, Helmholtz resonators. - Placement: All four corners, wall-ceiling junctions, behind speakers. - Effectiveness: Multiple traps often needed for full bass control. - Construction: Thick absorption (4-12 inches) or tuned cavities for specific frequencies.
3. Diffusion: Scattering reflections to preserve energy and add space: - Types: Quadratic Residue Diffusers (QRD), Primitive Root, Skyline, binary arrays. - Placement: Rear walls, side walls behind listening position, live room surfaces. - Spacing: Minimum 2-3 feet from listening position for effective diffusion. - Design: Mathematical sequences determine scattering pattern and frequency range.
4. Reflection Control: Managing early reflections: - First Reflection Points: Side walls, ceiling, floor (using mirror technique). - Treatment: Absorption at side and ceiling reflection points, diffusion on rear wall. - Floor Treatment: Carpet or area rug to control floor reflections.
Sound Isolation for Music Studios
1. Construction Principles: Effective sound isolation requires: - Mass: Heavy walls, floors, and ceilings to block sound transmission. - Decoupling: Separating structures to prevent vibration transfer. - Absorption: Sound absorbing materials within cavities. - Damping: Materials that reduce vibration in structures.
2. Room-in-Room Construction: The gold standard for studio isolation: - Floating Floor: Isolated concrete slab or wooden floor on resilient mounts. - Decoupled Walls: Inner walls separated from outer structure. - Suspended Ceiling: Independent ceiling system for maximum isolation.
3. Doors and Windows: Critical weak points requiring attention: - Acoustic Doors: Heavy, sealed doors with acoustic seals and multiple layers. - Double Doors: Two independent doors with airlock between. - Acoustic Windows: Laminated glass with different thicknesses, sealed frames.
4. Ventilation Systems: Maintaining comfort without noise intrusion: - Acoustic Baffles: Sound-absorbing duct liners. - Silencers: Specially designed boxes that reduce noise while allowing airflow. - Vibration Isolation: Flexible duct connections and vibration mounts for equipment.
Studio Design Process and Consultation
1. Needs Assessment: Understanding requirements: - Studio Type: Commercial, project, home, or specialized facility. - Genre Focus: Music styles influence acoustic requirements. - Equipment Requirements: Size, power, and connectivity needs. - Budget Considerations: Balancing design goals with financial constraints.
2. Design Development: Creating the acoustic plan: - Acoustic Modeling: Computer simulation of room behavior. - Treatment Specification: Detailed design of absorption, diffusion, and isolation. - System Integration: Coordinating audio equipment with acoustic design. - Visual Design: Creating spaces that inspire creativity.
3. Implementation: Building the studio: - Construction Management: Overseeing construction to ensure acoustic specifications. - Treatment Installation: Proper placement and installation of acoustic materials. - System Installation: Installing and wiring audio systems.
4. Commissioning: Verifying performance: - Acoustic Measurements: Testing all acoustic parameters. - System Calibration: Tuning monitors and audio equipment. - Listening Tests: Subjective evaluation with reference material.
"The perfect studio acoustic design is one where the room disappears—you don't hear the space, you only hear the music. That transparency is the ultimate goal of professional studio design."
Common Studio Design Mistakes to Avoid
1. Over-Absorption: Creating a dead, lifeless sound that makes mixing difficult. Balance absorption with diffusion and maintain some liveliness in the room.
2. Underestimating Bass: Failing to adequately address low-frequency issues. Invest in proper bass trapping, especially in corners.
3. Poor Isolation: Neglecting soundproofing, leading to recordings contaminated by external noise and conflicts with neighbors.
4. Incorrect Speaker Placement: Placing monitors too close to walls or in corners, causing exaggerated bass response and inaccurate imaging.
5. Ignoring Ventilation: Inadequate airflow leads to uncomfortable conditions and potential equipment issues. Design for quiet but effective ventilation.
6. Overlooking Symmetry: Asymmetrical treatment can cause imaging and balance issues in the control room.
7. Skimping on Construction: Poorly built studios compromise all aspects of acoustic performance. Invest in quality construction from the start.
Budget Considerations for Music Studio Acoustics
1. Priority Investment: Focus on the most critical areas first—control room acoustics and sound isolation typically take priority.
2. DIY Options: Building your own acoustic panels and bass traps can save significant money while maintaining quality.
3. Strategic Upgrades: Start with essential treatments and add more over time as budget allows.
4. Professional Consultation: Expert advice can help you avoid costly mistakes and achieve better results with less expense.
5. Long-Term Value: Quality acoustics enhance the value of your studio and the quality of your recordings, making it a worthwhile investment.
Future Trends in Music Studio Acoustic Design
1. Sustainable Materials: Eco-friendly acoustic products made from recycled and natural materials.
2. Active Acoustics: Electronic systems that can adjust room acoustics for different applications.
3. Remote Collaboration: Studios designed for seamless remote work and live streaming.
4. Immersive Audio: Accommodating Dolby Atmos and other 3D audio formats.
5. AI-Assisted Design: Using artificial intelligence to optimize acoustic treatment placement and room design.
Conclusion
Music studio acoustic design is a complex but rewarding discipline that transforms ordinary rooms into exceptional creative environments. By understanding the principles of sound control and implementing appropriate design strategies, you can create a studio where music sounds its best and creativity thrives.
Whether you're building a professional facility or setting up a home studio, the principles remain the same: control reflections, manage bass, isolate sound, and create a space that inspires great performances and accurate mixing decisions. With careful planning and expert guidance, your studio can become a place where musical magic happens.
At Ray Acoustics, we specialize in creating music studios that deliver professional results. Our team brings decades of experience in acoustic design, helping musicians, producers, and engineers achieve their creative vision with spaces that sound as good as they look.
Remember: The best recordings start with the best rooms. Invest in your studio acoustics, and your music will thank you.
